Blueprint Manager

SDK source (GitHub): https://github.com/tangle-network/blueprint/tree/v2/crates/manager

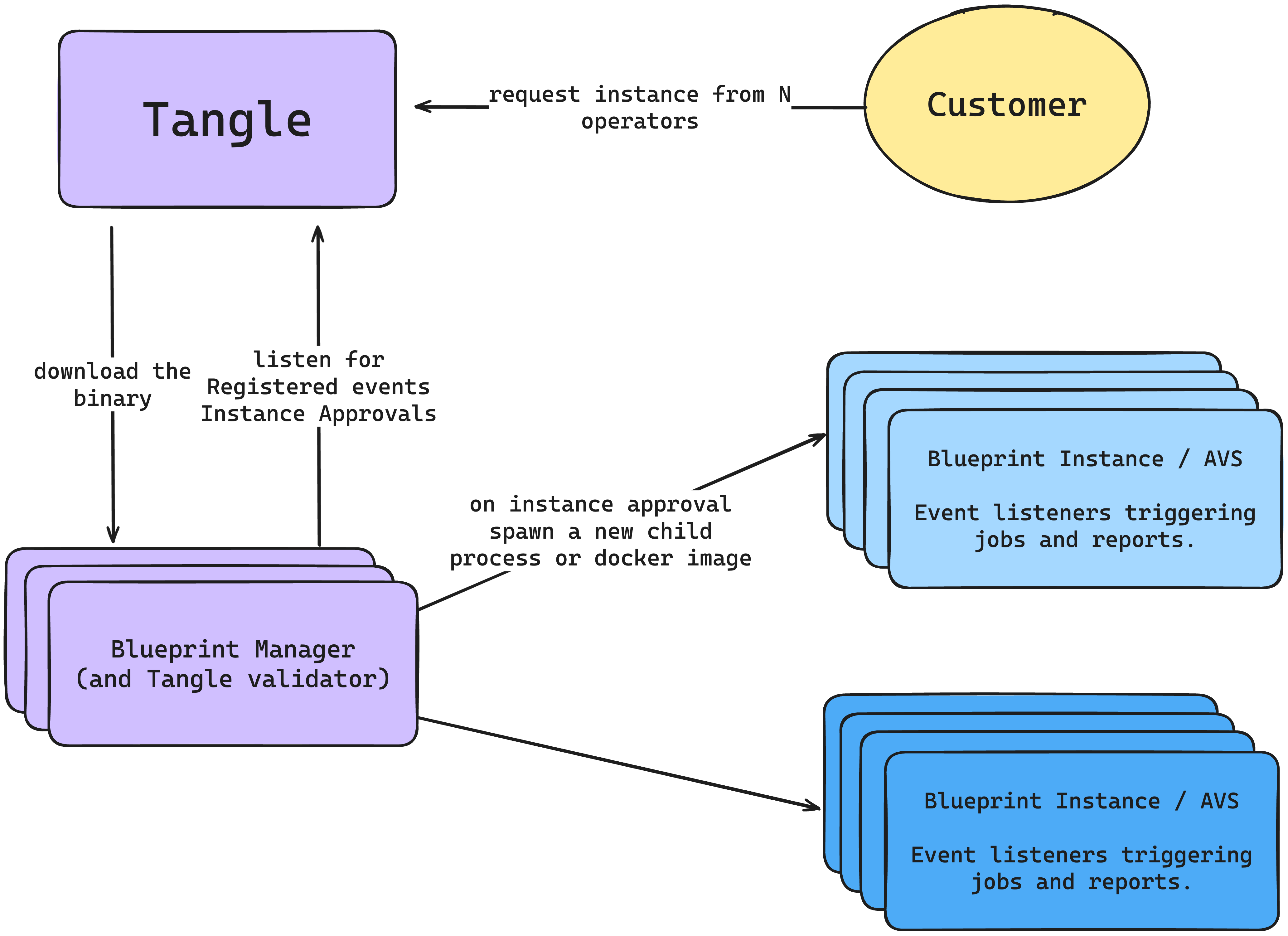

On Tangle, Blueprints have both on-chain and off-chain lifecycles. The off-chain component is managed by the Blueprint Manager, which is the operator runtime for Tangle v2 services. This on-chain and off-chain logic functions as follows:

1. Operators must register for Blueprints onchain. This indicates an operators willingness to accept requests for Blueprint Instances of that type.
2. Operators download the Blueprint’s artifacts and metadata after registering. The Blueprint Manager watches chain events and keeps the operator runtime in sync.
3. Operators execute Blueprint services when they are assigned. The Blueprint Manager runs artifacts natively, in a container, or inside a VM based on the blueprint definition.

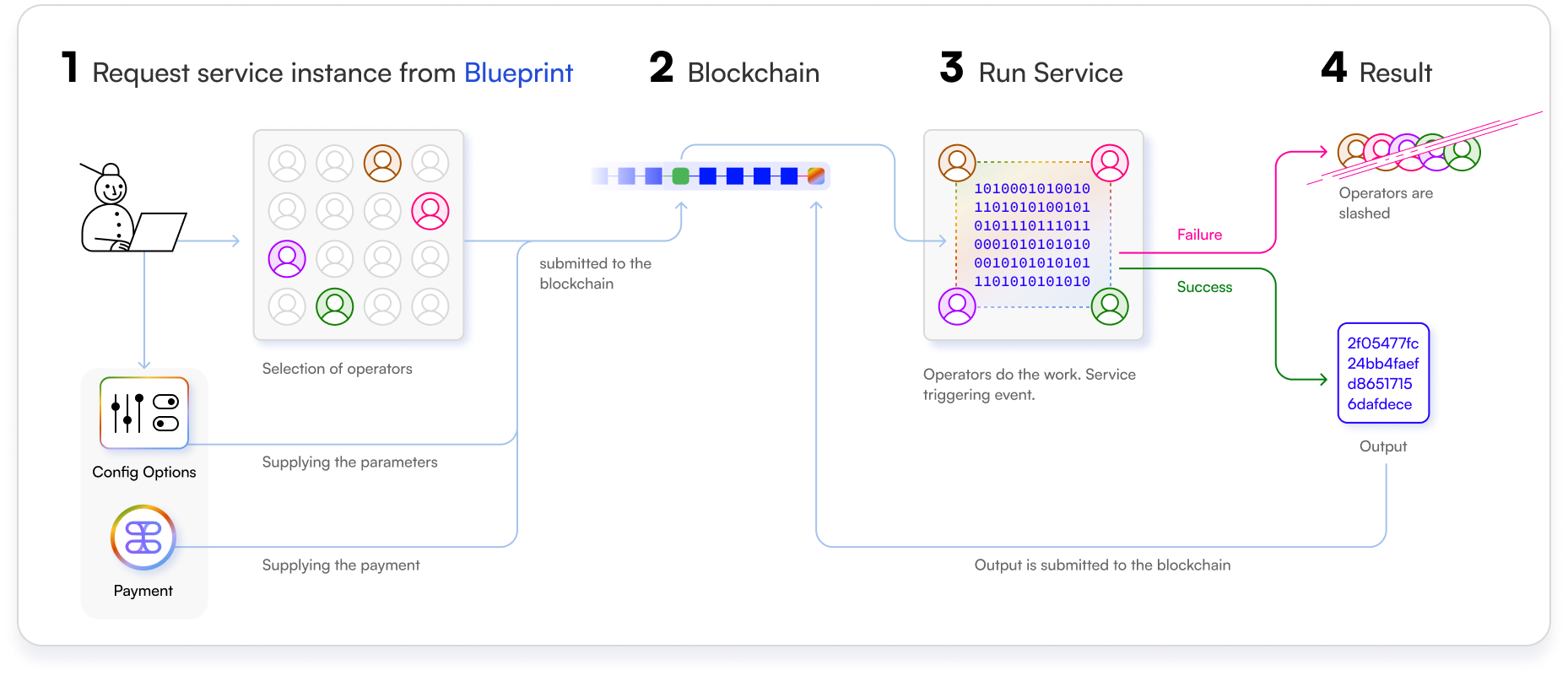

Blueprint and Service Instance Lifecycle

Blueprints interact with the Tangle Network in several key ways:

1. Blueprints are deployed to Tangle, with their metadata and manager contracts stored on-chain.
2. Customers instantiate a Service, which represents a single configured service instance.
3. Services end once they reach their time-to-live (TTL) or run out of funds to pay operators.

Blueprints provide a useful abstraction, allowing developers to create reusable service infrastructures as if they were smart contracts. This enables developers to monetize their work and align long-term incentives with the success of their creations, benefiting proportionally to their Blueprint’s usage.

Blueprints and Services are managed by the Tangle v2 contracts in tnt-core, including the core Tangle contract and the BlueprintServiceManager stack. Staking and operator registration live in these contracts, and the Blueprint Manager watches their events to decide what to run.
